Hanil Scientific · Korea
Centrifuges and DNA concentrators
Benchtop, floor-standing and micro centrifuges with fixed-angle and swing-out rotors, plus vacuum concentrators for DNA, RNA and solvent samples.
- Category
- Sample Preparation
- Manufacturer
- Hanil Scientific
- Country of origin
- Korea
- Models listed
- 12
- Availability
- Stock available
Models
12 models and their specifications

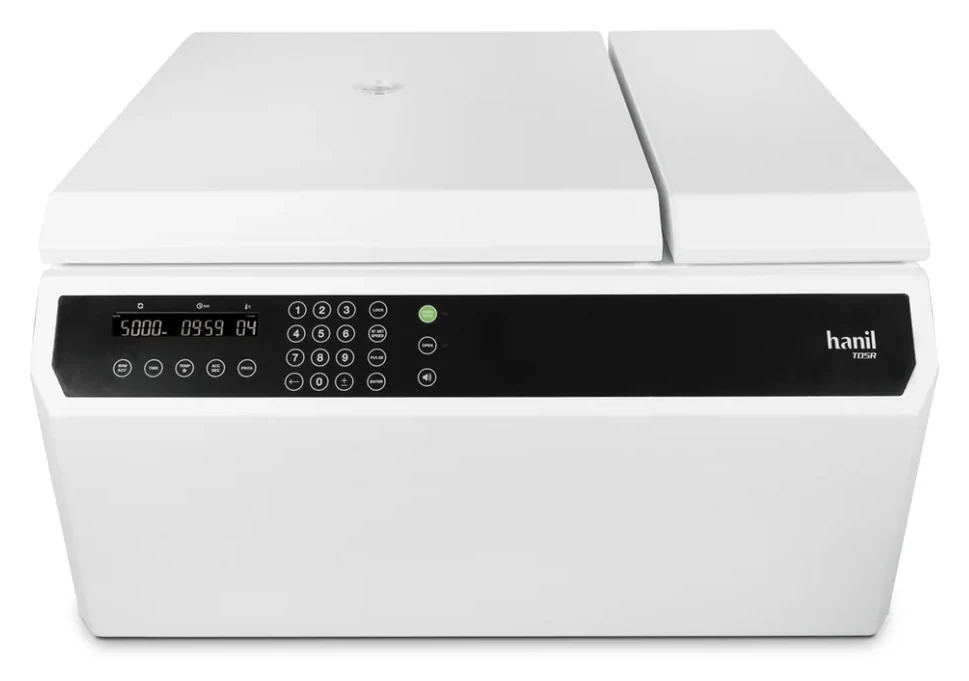

01T05R Refrigerated Benchtop Centrifuge
– Max. RPM: 5,000 rpm – Max RCF Fixed angle: 3,983 x g – Max RCF Swing-out: 4,218 xg – Temp. range : -10ºC ~ 40ºC - Capacity: 100 mL x 4 (Swing out) – Dimension (W x D x H, mm) : 584 x 554 x 313
- Availability of rotors that accommodate up to 50mL / 50mL conical tubes
- Spin up 32 vacutainer tubes of all volumes at single operation.
- Various rotors, buckets and adaptors including 2 x 2 microplate
- Outstanding sensitive sample separations with 9/10 acceleration and deceleration steps
- Accurate experiment with “At set speed” time counting
- Easy to set with numeric key pad
- 100 program memory
- Very quiet and static operation
Technical specifications
| Max. RPM | 5,000 rpm |
|---|---|
| Max. RCF (Fixed angle / Swing-out) | 3,983 x g / 4,218 x g |
| Max. Capacity (Fixed angle / Swing-out) | 10 x 50 mL / 100 mL x 4 |
| Temp range(°C) | -10ºC ~ 40ºC |
| ACC/DCC ramps | 9/10 ramps |
| Time control | Timed < 100 hr, Pulse, or Continuous |
| Time counting | Selectable, at set speed of from starting. |
| Dimension (W x D x H) | 584 x 554 x 313 mm |
| Weight | 65.7kg |
| Power requirement | 900 VA |
| Power input (V,Hz) | 210V ~ 240V, 50/60Hz (110V optional) |

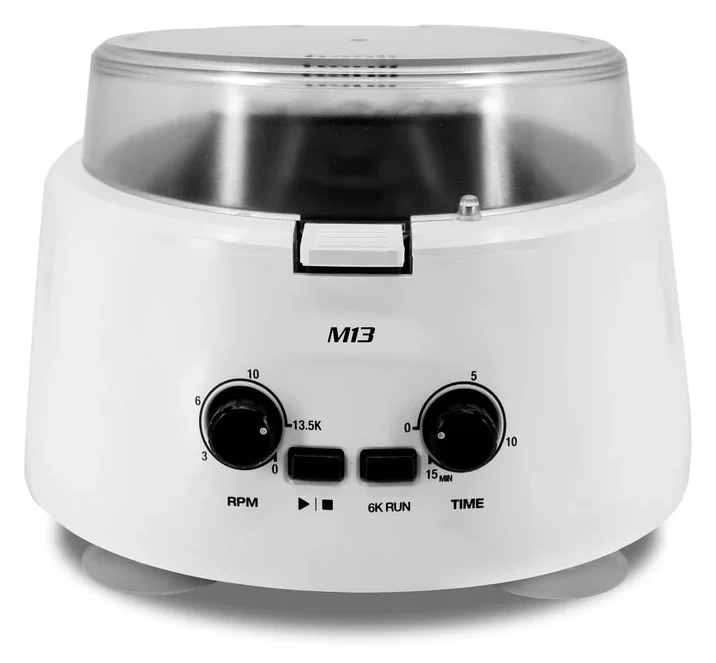

02M13 Micro Centrifuge
– Max. RPM: 13,500 rpm – Max RCF: 12,032 xg - Max. Capacity: 6×5.0 mL, 12 x 1.5/2.0 mL, 4 PCR strips – Dimension(W x D x H): 189.7 x 202 x 129 mm – Weight: 1.5kg
Technical specifications
| Max. RPM | 13,500 rpm |
|---|---|
| Max. RCF | 12,032 xg |
| Max. capacity | 12 x 1.5/2.0 mL, 4 PCR strips |
| Time control | ≤15 min, pulse |
| Dimension (W x D x H, mm) | 189.7 x 202 x 129 |
| Time Control | ≤15 min, pulse |
| Weight without rotor | 1.5 kg |
| Power requirement (VA) | 200 VA |
| Power input (V, Hz) | 210~240V 50/60 Hz (110V optional) |
| Cat. No. | M13 |

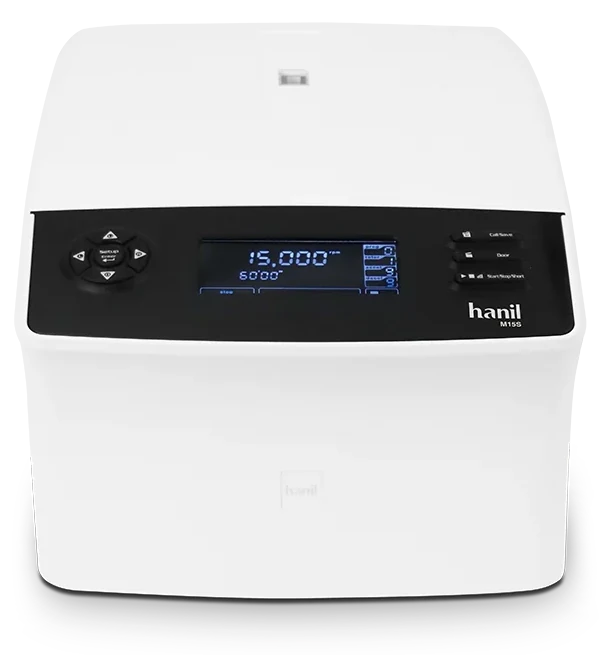

03M15S Micro Centrifuge
– Max. RPM: 15,000 rpm – Max RCF: 21,206 xg - Max. Capacity: 24 x 1.5 / 2.0 mL – Dimension(W x D x H): 285 x 593 x 281 mm – Weight without rotor: 15kg
- Max.15,000 RPM with 24 hole rotor spec. that can cover all molecular biology works
- 24 x 2.0 mL rotor with plastic lid
- Ideal for very quiet and fast operation
- Easy to readable graphical LCD display
- Easy-to-clean, UV resistant surface and stainless steel chamber
- Compact design and light-weight
Technical specifications
| Max. RPM | 15,000 rpm |
|---|---|
| Max. RCF | 21,206 xg |
| Max. capacity | 24 x 1.5/2.0 mL, |
| ACC/DEC ramps | 9/10 steps |
| Acc. time for max. speed | ≤15 sec |
| Dec. time for max. speed | ≤15 sec |
| Time control | < 100 min, pulse, continuous |
| Time counting | From starting |
| Program memory | 10 |
| Imbalance cutoff / tracking | Yes |
| Rotor identification | Manual |
| Dimension (W x D x H, mm) | 293 x 380 x 242 |
| Height with open lid | 455 |
| Weight without rotor | 15kg |
| Power requirement | 500 VA (2.3A) |
| Power input (V, Hz) | 210V~240V, 50/60Hz(110 V optional) |

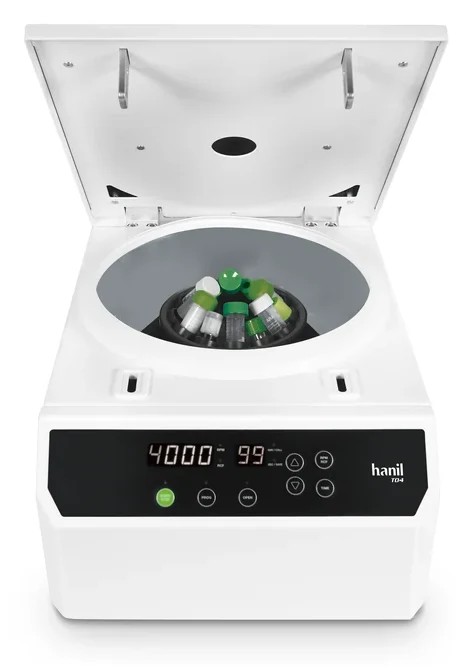

04T04 Benchtop Centrifuge
– Max. RPM: 4,000 rpm – Max RCF: 2,075 x g - Capacity:12 x 10mL or 6 x 15mL – Dimension(W x D x H): 296 x 408 x 211 mm – Weight: 15kg
- Spin up to 12 tubes of all volumes of Vacutainer or 6 x 15mL conical tubes at one time.
- Supplied with 12-hole rotor and sleeves.
- Furnished with unique air flow design and anti-vibration structure to minimize heat and noise generation.
- Easy-to-clean stainless steel chamber and UV resistance exterior.
- Outstanding safety and durability with two layers of steel.
Technical specifications
| Max. RPM | 4,000 rpm |
|---|---|
| Max. RCF | 2,075 x g |
| Capacity | 12 x 10mL / 6 x 15mL |
| ACC Time to Max Speed | 20sec |
| DEC Time from Max Speed | 20sec |
| Time control | Timed < 100min, or Continuous |
| Dimension (W x D x H) | (296 x 408 x 211) mm |
| Weight | 15 kg |
| Power requirement | 140 VA |
| Power input (V,Hz) | 210V ~ 240V, 50/60Hz (110V optional) |

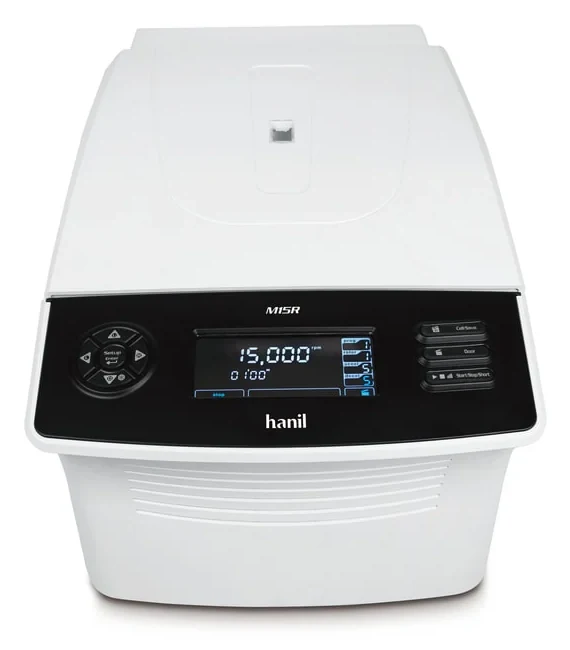

05M15R Refrigerated Micro Centrifuge
– Max. RPM: 15,000 rpm – Max RCF: 21,583 xg - Max. Capacity: 10 x 5.0 mL – Dimension(W x D x H): 285 x 593 x 281 mm – Weight: 33kg
- Max.15,000 RPM with 24 hole rotor spec. that can cover all molecular biology works
- 10 x 5.0 mL, 24 x 2.0 mL or 4 PCR strip rotor with aluminum lid
- NEW “Easy-Lock” rotor lid with motorized mechanics for gentle “One-touch” lid opening and closure
- Tightly sealed rotor with two V-shape rubber rings and an O-ring
- Ideal for very quiet and fast operation
- Easy to readable graphical LCD display
- Easy-to-clean, UV resistant surface and stainless steel chamber
- Compact design and light-weight
Technical specifications
| Max. RPM | 15,000 rpm |
|---|---|
| Max. RCF | 21,583 xg |
| Max. capacity | 10 x 5.0 mL,24 x 1.5/2.0 mL,4 PCR strips |
| ACC/DEC ramps | 9/10 steps |
| Acc. time for max. speed | ≤15 sec |
| Dec. time for max. speed | ≤15 sec |
| Temperature range (ºC) | -10℃ to 40℃ |
| Time control | < 100 min, pulse, continuous |
| Time counting | From starting |
| Program memory | 10 |
| Imbalance cutoff / tracking | Yes |
| Rotor identification | Manual |
| Dimension (W x D x H, mm) | 285 x 593 x 281 |
| Height with open lid | 525 |
| Weight without rotor | 33kg |
| Power requirement | 2.5KVA |
| Power input (V, Hz) | 210V ~ 240V, 50/60Hz (110 V optional) |
06T04B Benchtop Centrifuge
– Max. RPM: 4,000 rpm – Max RCF: 2,773 x g - Capacity: 100mL x 4 – Dimension(W x D x H):375 x 507 x 264.5
- Usage of 10 x 50 mL conical tubes for fixed angle rotors, 8 x 50mL conical tubes for swing-out rotors.
- Spin up 32 tubes of all volumes of vacutainer at one time
- Various rotors, buckets and adaptors including 2 x 2 microplate
- Oustanding sensitive sample separations with 9/10 acceleration and deceleration stages
- Accurate experiment with “At set speed” time counting
- Easy to set with numeric key pad
- 100 program memory
- Very quiet and static operation
Technical specifications
| Max. RPM / Fixed angle | 4,000 rpm |
|---|---|
| Max. RCF / Fixed angle | 2,773 x g |
| Max. RPM / Swing-out | 4,000 rpm |
| Max. RCF / Swing-out | 2,774 x g |
| Capacity | 100 mL x 4 |
| ACC / DCC ramps | 9 / 10 ramps |
| Time control | Timed < 100 min, Pulse, or Continuous |
| Time counting | Selectable, at set speed of from starting. |
| Dimension (W x D x H) | 375 x 507 x 265 mm |
| Weight | 25.7 kg |
| Power requirement | 340 VA |
| Power input (V,Hz) | 210 V ~ 240 V, 50 / 60 Hz (110 V optional) |
07mini 6 Micro Centrifuge
– Max. RPM: 6,500 rpm – Max RCF: 2,234 x g (1.5/2.0 mL Tube) / 1,412 x g (PCR Strip) – Capacity: 6 x 1.5/2.0 mL, 2 x 8-Tube PCR Strip – Dimension(W x D x H): 150 x 150 x 90 mm – Weight: 650g
Technical specifications
| Max. RPM | 6,500 rpm |
|---|---|
| Max. RCF | 2,234 x g (1.5/2.0 mL Tube) / 1,412 x g (PCR Strip) |
| Capacity | >6 x 1.5/2.0 mL, 2 x (8-Tube or PCR Strip) |
| ACC Time to Max Speed | 4 sec |
| DEC Time from Max Speed | 2 sec |
| Operation Mode | Selectable, Short Spin (12 sec) or Continuous (15 min) |
| Dimension (W x D x H) | 150 x 150 x 90 mm |
| Weight | 650 g |
| Power Supply | AC 100~240V 50/60Hz 2A |

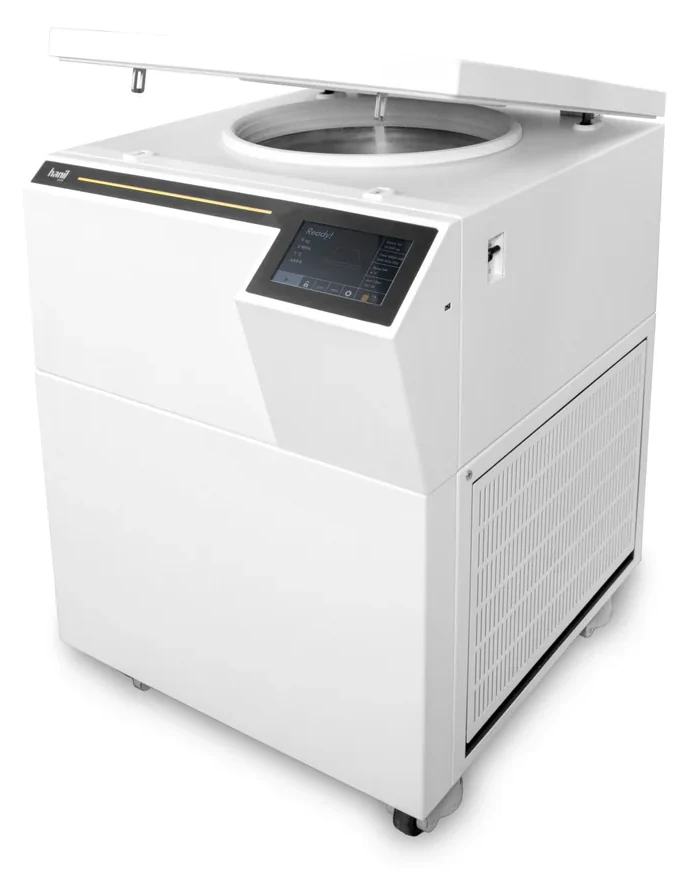

08S12R High-Speed Refrigerated Centrifuge
• Recommended for large volume samples at high speed • Capacity of 6 x 250 mL to 12,000 rpm (22,000 xg) • Imbalance cut-off and tracking • Intuitive and easy to control with extensive and informative display • Smooth operation with motorized lid opening and closure • Cooled with CFC free, environmental friendly refrigerant • Excellent temperature control • Password lock function
Technical specifications
| Max. RPM | 12,000 rpm |
|---|---|
| Max. RCF | 22,265 xg |
| Max. capacity | 6 x 1,000 mL |
| ACC/DEC ramps | 10/11 steps |
| Temperature range | -10℃ to 40℃ |
| Time control | Pulse Timed < 100 hr, continuous |
| Program memory | 100 |
| Imbalance cutoff / tracking | Yes |
| Rotor identification | Automatic |
| Dimension (W x D x H, mm) | 669 x 795 x 887 |
| Weight without rotor | 245 kg |
| Noise level | ≤ 65 dB |
| Power requirement (VA) | 3.3kVA |
| Power input (V, Hz) | 210~240V 50/60 Hz |

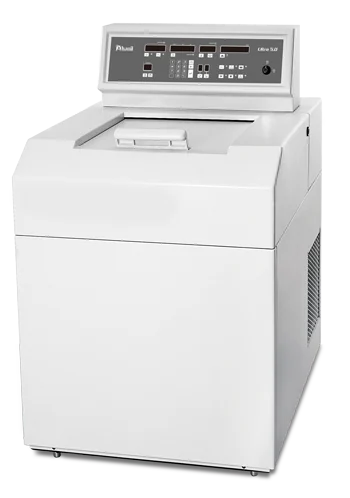

09Ultra 5.0 Floor-Standing Centrifuge
– Max. RPM: 50,000 rpm – Max RCF: 254,340 xg - Max. Capacity: 6 x 250 mL – Dimension(W x D x H): 710 x 1,000 x 1,260 mm – Weight: 450kg
Technical specifications
| Max. RPM | 50,000 rpm |
|---|---|
| Max. RCF | 254,340 xg |
| Max. capacity | 6 x 250 mL |
| ACC/DEC ramps | 10/10 steps |
| Temperature range | -10℃ to 40℃ |
| Time control | < 100 hr, continuous |
| Program memory | 100 |
| Vacuum system | Yes |
| Rotor identification | Automatic |
| Dimension (W x D x H, mm) | 710 x 1,000 x 1,260 |
| Weight without rotor | 450 kg |
| Noise level | ≤ 65 dB |
| Power requirement (VA) | 5.0 kVA |
| Power input (V, Hz) | 220V+ / 60 Hz (110V, 50 Hz optional) |
| Cat. No. | UL-5.0 |

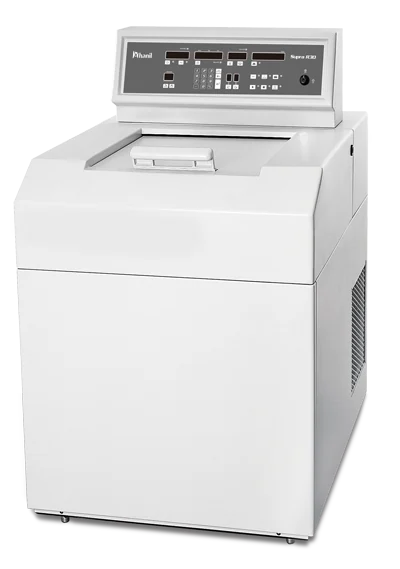

10Supra R30 High-Speed Centrifuge
– Max. RPM: 31,000 rpm – Max RCF: 106,258 xg - Max. Capacity: 4 x 1,000 mL – Dimension(W x D x H): 710 x 1,000 x 1,260 mm – Weight: 415 kg
Technical specifications
| Max. RPM | 31,000 rpm |
|---|---|
| Max. RCF | 106,258 xg |
| Max. capacity | 4 x 1,000 mL |
| ACC/DEC ramps | 10/10 steps |
| Temperature range | -10℃ to 40℃ |
| Time control | < 100 hr, continuous |
| Program memory | 100 |
| Imbalance cutoff / tracking | Yes/- |
| Rotor identification | Manual |
| Dimension (W x D x H, mm) | 710 x 1,000 x 1,260 |
| Weight without rotor | 415 kg |
| Noise level | ≤ 65dB |
| Power requirement (VA) | 4.0 kVA |
| Power input (V, Hz) | 210~240V 60 Hz (110V, 50 Hz optional) |
| >Cat. No. | SU-R30 |

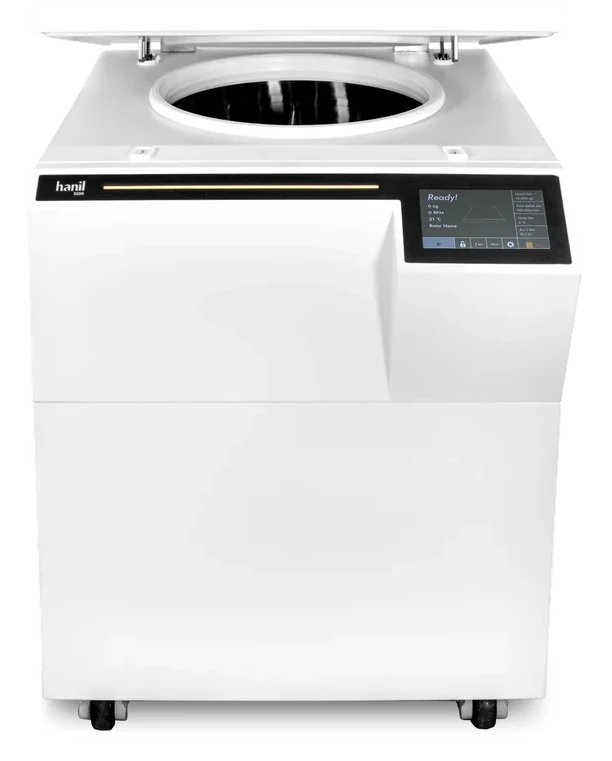

11S22R High-Speed Refrigerated Centrifuge
Technical specifications
| Max. RPM | 22,000 rpm |
|---|---|
| Max. RCF | 52,001 xg |
| Max. capacity | 4 x 1,000 mL |
| ACC/DEC ramps | 10/11 steps |
| Temperature range | -10℃ to 40℃ |
| Time control | < 100 hr, continuous, pulse |
| Program memory | 100 |
| Imbalance cutoff / tracking | Yes |
| Rotor identification | Automatic |
| >Dimension (W x D x H, mm) | 669 x 795 x 887 |
| >Weight without rotor | 245 kg |
| Noise level | ≤ 65dB |
| Power requirement (VA) | 3.6 kVA |
| Power input (V, Hz) | 210~240V 60 Hz |

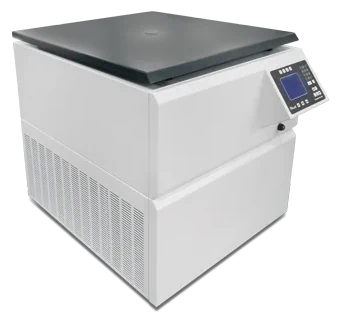

12Component R6 Blood Bank Centrifuge
– Max. RPM: 5,000 rpm – Max RCF : 7,261 xg – Max. Capacity : 6 x 1,000 mL – Dimension (W x D x H): 816 x 906 x 965 mm – Weight: 380 kg
Technical specifications
| Max. RPM | 5,000 rpm |
|---|---|
| >Max. RCF | 7,261 xg |
| Max. capacity | 6 x 1000 mL |
| ACC/DEC ramps | 10/10 steps |
| Temperature range | -20℃ to 40℃ |
| Time control | < 100 hr, continuous |
| Program memory | 100 |
| Imbalance cutoff / tracking | Yes |
| Rotor identification | Automatic |
| Dimension (W x D x H, mm) | 816 x 906 x 965 |
| Weight without rotor | 380 kg |
| Noise level | ≤ 65 dB |
| Power requirement (VA) | 5.0 kVA |
| Power input (V, Hz) | 210~240V, 60 Hz (50 Hz optional) |
| Cat. No. | CP-R6 |
