Baoding Shenchen · China

Dispensing and peristaltic pumps

Laboratory peristaltic pumps and dispensing and filling pumps with interchangeable pump heads and precise flow control.

Category
Fluid Handling and Teaching
Manufacturer
Baoding Shenchen
Country of origin
China
Models listed
12
Availability
Stock available
Request a quotation Catalogues 6 Manufacturer site
Dispensing and peristaltic pumps

Models

12 models and their specifications

01SP-MiniPump Laboratory Peristaltic Pump
SP-MiniPump Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • 304 stainless steel housing, resisting corrosion, space-saved.
  • OLED screen, displaying the current motor speed and working status.
  • Digital knob controls speed, and toggle switch controls direction and start/stop.
  • Various external control functions, supporting RS485 standard Modbus protocol.

Technical specifications

Flow rate range0.0024~190mL/min
Speed range0.1~300 rpm, reversible
Speed resolution0.1rpm
Speed controlDigital knob controls speed
Motor typeStepper motor
DisplayOLED display
External controlStart/stop control (switch signal), Speed control 0-5V, 0-10V, 4-20mA optional (analog signal)
Communication interfaceRS485 supports Modbus protocol (RTU mode)
Power supply24V/1A DC power
Drive dimension136×113×108 mm (L×W×H)
Weight1.64 kg
Power consumption<30W
Condition temperature0-40℃
Relative humidity<80%
IP ratingIP31
Ask for a quotation Datasheet Manufacturer page
02LabV1-III Laboratory Peristaltic Pump
LabV1-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adjusting function, can be in the case of not stop, adjust the flow, eliminate the error.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.

Technical specifications

Flow rate range0.0053-775mL/min
Flow rate resolution0.01mL/min
Speed range0.1-150rpm
Speed resolution0.01rpm
Dispensing volume0.01-9999mL
Volume resolution0.01mL
Dispensing time0.1-9999s
Pause time0.1-9999s
Time resolution0.01s
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy<士0.5%
Back suction angle0-360°
Motor typeStepper motor
Display4.3 inch-industrial grade-True color LCD screen
Control methodTouch screen and Mechanical keypad
Keypad lifetime300,000 times
External control signal0-5V,0-10V,4-20mA for option
Start/stop,change direction signalPassive switch signal,such as:foot pedal switch, Active switch signal:5V-24V
Communication interfaceRS232,RS485 support MODBUS protocol(RTU mode)
Output interfaceOutput motor working status(Open-Collector output)
Power supplyAC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension (LxWxH)259x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption<80W
Condition temperature0-40°C
Relative humidity<80%
Ask for a quotation Datasheet Manufacturer page
03LabV3-III Laboratory Peristaltic Pump
LabV3-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adjusting function, can be in the case of not stop, adjust the flow, eliminate the error.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.

Technical specifications

Flow rate range0.0053~1808mL/min
Flow rate resolution0.01mL/min
Speed range0.1-350rpm
Speed resolution0.01rpm
Dispensing volume0.01-9999mL
Volume resolution0.01mL
Dispensing time0.1-9999s
Pause time0.1-9999s
Time resolution0.01s
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy<士0.5%
Back suction angle0-360°
Motor typeStepper motor
Display4.3 inch-industrial grade-true color LCD screen
Control methodTouch screen and Mechanical keypad
Keypad lifetime300,000 times
External control signal0-5V, 0-10V, 4-20mA for option
Start/stop,change direction signalPassive switch signal, such as: foot pedal switch, Active switch signal: 5V-24V
Communication interfaceRS232, RS485 support MODBUS protocol(RTU mode)
Output interfaceOutput motor working status(Open-collector output)
Power supplyAC 220V±10%,50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension (LxWxH)259x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption<80W
Condition temperature0-40°C
Relative humidity<80%
Ask for a quotation Datasheet Manufacturer page
04LabN1-III Laboratory Peristaltic Pump
LabN1-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Friendly interface, 3.2 inch big screen LCD display working parameters in real time.
  • Super silent drive setting, precise control, low vibration and low noise.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Power down memory function, store parameters in time, safe and reliable. Strong anti-jamming featurewide voltage design, suitable for complex power supply environment.

Technical specifications

Flow rate range0.0053-775ml/min
Speed resolution0.1rpm
Back suction angle0-360°
Dispensing time0.1s-9999h
Pause time0.1s-9999h
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Display3.2" color LCD screen display
Motor typeClosed-loop stepper motor
Control systemMechanical keypad+Rotary encoded switch
Keypad lifetime300,000 times
External control speed signal0-5V, 0-10V, 4-20mA for option
Start/stop.direction signalPassive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interfaceRS232, RS485 support Modbus protocol(RTU mode)
Output interfaceOutput motor working status (Open-Collector output)
Power supplyAC 220V±10%, 50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension259x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption< 80W
Environment temperature0-40°C
Relative humidity<80%
Ask for a quotation Datasheet Manufacturer page
05LabV6-III Laboratory Peristaltic Pump
LabV6-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Dynamic display transferring status. Flow rate data, setting parameters and system configuration display in the same screen.
  • Four-working modes: Fixed volume, volume dispensing, speed dispensing, and timing start/stop functions meet complex transmission and dispensing requirements.
  • Intelligent calibration function and online micro adjusting function, can be in the case of not stop, adjust the flow, eliminate the error.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.

Technical specifications

Flow rate range0.0053~3100mL/min
Flow rate resolution0.01mL/min
Speed range0.1-600rpm
Speed resolution0.01rpm
Dispensing volume0.01-9999mL
Volume resolution0.01mL
Dispensing time0.1-9999s
Pause time0.1-9999s
Time resolution0.01s
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Flow rate accuracy<士0.5%
Back suction angle0-360°
Motor typeStepper motor
Display4.3 inch-industrial grade-true color LCD screen
Control methodTouch screen and Mechanical keypad and Voice Control (Optional)
Keypad lifetime300,000 times
External control signal0-5V, 0-10V, 4-20mA for option
Start/stop,change direction signalPassive switch signal, such as: foot pedal switch, Active switch signal: 5V-24V
Communication interfaceRS232,RS485 support MODBUS protocol(RTU mode)
Output interfaceOutput motor working status(Open-Collector output)
Power supplyAC 220V±10%,50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension (LxWxH)259x157x237mm (LxWxH)
Drive weight4.40kg
Power consumption<80W
Condition temperature0-40°C
Relative humidity<80%
Ask for a quotation Datasheet Manufacturer page
06LabN3-III Laboratory Peristaltic Pump
LabN3-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Friendly interface, 3.2 inch big screen LCD display working parameters in real time.
  • Super silent drive setting, precise control, low vibration and low noise.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Power down memory function, store parameters in time, safe and reliable. Strong anti-jamming featurewide voltage design, suitable for complex power supply environment.

Technical specifications

Flow rate range0.0053-1808mL/min
Speed resolution0.1rpm
Back suction angle0-360°
Dispensing time0.1s-9999h
Pause time0.1s-9999h
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Display3.2" color LCD screen display
Motor typeClosed-loop stepper motor
Control systemMechanical keypad+Rotary encoded switch
Keypad lifetime300,000 times
External control speed signal0-5V,0-10V,4-20mA for option
Start/stop.direction siqnalPassive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interfaceRS232, RS485 support Modbus protocol(RTU mode)
Output interfaceOutput motor working status (Open-Collector output)
Power supplyAC 220V±10%, 50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension259x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption< 80W
Environment temperature0-40°C
Relative humidity<80%
Ask for a quotation Datasheet Manufacturer page
07LabN6-III Laboratory Peristaltic Pump
LabN6-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • Friendly interface, 3.2 inch big screen LCD display working parameters in real time.
  • Super silent drive setting, precise control, low vibration and low noise.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Power down memory function, store parameters in time, safe and reliable. Strong anti-jamming featurewide voltage design, suitable for complex power supply environment.

Technical specifications

Flow rate range0.0053-3100ml/min
Speed resolution0.1rpm
Back suction angle0-360°
Dispensing time0.1s-9999h
Pause time0.1s-9999h
Repeat number1-9999 times, setting"0" as infinite/continuous dispensing
Display3.2" color LCD screen display
Motor typeClosed-loop stepper motor
Control systemMechanical keypad+Rotary encoded switch
Keypad lifetime300,000 times
External control speed signal0-5V, 0-10V, 4-20mA for option
Start/stop.direction siqnalPassive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interfaceRS232, RS485 support Modbus protocol(RTU mode)
Output interfaceOutput motor working status (Open-Collector output)
Power supplyAC 220V±10%, 50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension259x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption<80W
Environment temperature0-40°C
Relative humidity<80%
Ask for a quotation Manufacturer page
08KF300 Plus/KT15 Dispensing and Filling Peristaltic Pump
KF300 Plus/KT15 Dispensing and Filling Peristaltic Pump
  • Product Introduction
  • Technical Parameter

Technical specifications

Speed range0.1-350 rpm
Dispensing volume range0.01-9999.99 mL
Dispensing time0.1-9999.99 s
Pause time0.1-9999.99 s
Volume resolution0.01 mL
Time resolution0.01 s
Copy numbers1-9999 times, setting "0" means unlimited
Back suction angle0-3600°
Dispensing accuracy<±0.5%
Filling accuracy±1% (32 units)
Display4.3-inch industrial grade true color LCD screen
Control methodTouch screen and mechanical keypad
Start/stop, directionPassive switch signal (e.g. foot pedal switch); Active switch signal: 5-24V universal
Output interfaceMotor working status output (open-collector)
Keypad lifetime300,000 times
Power supplyAC 100V-240V (50Hz/60Hz)
Communication interfaceRS485 communication, Modbus protocol (RTU mode)
Condition temperature0-40°C
Relative humidity<80%
Ask for a quotation Manufacturer page

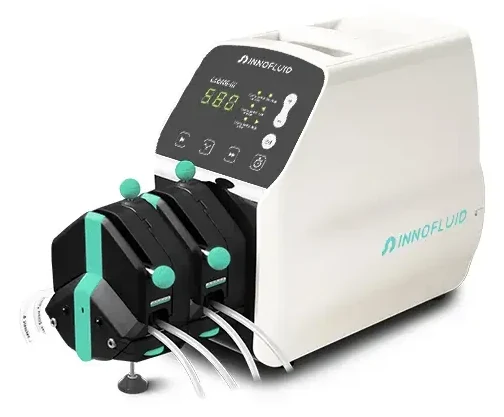

09LabM6-III Laboratory Peristaltic Pump
LabM6-III Laboratory Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Pump Head Parameter
  • Video Tutorials
  • 3 digital LED display motor speed, Mechanical keypad control, multiple external control for selection.
  • Timing function, the time range of 0.5 seconds -999 seconds can be used as a simple dispensing.
  • Timing function, can be used for simple dispense. Has both RS232 and RS485 communication mode.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.

Technical specifications

Flow rate range0.0053-3100mL/min
Speed range0.1-600rpm
Speed resolution0.1 rpm
Testing time range0.5s-999s
Outlet pressure0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)
Back suction angle0-360°
Display3 digital LED
Control methodMechanical keypad
Keypad lifetime300,000 times
External control speed signal0-5V, 0-10V, 4-20mA for option
Start/stop, direction signalPassive switch signal, such as foot pedal switch; Active switch signal, default 24V
Communication interfaceRS232/RS485 support MODBUS protocol (RTU mode)
Power supplyAC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension323x157x237mm(LxWxH)
Drive weight4.40kg
Power consumption<80W
Environment temperature0-40℃
Relative humidity<80%
IP rateIP31
Ask for a quotation Manufacturer page
10KF300 Plus/HandyPump Dispensing and Filling Peristaltic Pump
KF300 Plus/HandyPump Dispensing and Filling Peristaltic Pump
  • Product Introduction
  • Technical Parameter

Technical specifications

Speed range0.1-300 rpm
Dispensing volume range0.01-9999.99 mL
Dispensing time0.1-9999.99 s
Pause time0.1-9999.99 s
Volume resolution0.01 mL
Time resolution0.01 s
Copy numbers1-9999 times, setting "0" means unlimited
Back suction angle0-3600°
Dispensing accuracy<±0.5%
Filling accuracy1-32 units
Display4.3-inch industrial grade true color LCD screen
Control methodTouch screen and mechanical keypad
Start/stop, directionPassive switch signal (e.g. foot pedal switch); Active switch signal: 5-24V
Output interfaceOutput motor working status (open-collector output)
Keypad lifetime300,000 times
Power supplyAC 100-240V (50Hz/60Hz)
Communication interfaceRS485 supports Modbus protocol (RTU mode)
Condition temperature0-40℃
Relative humidity<80%
ModelPump HeadSpeed Range(rpm)TubingFlow Rate(mL/min)
KF300 PlusHandyPump0.1-30013#，14#，19#，16#，25#0.0033-365.69
Ask for a quotation Manufacturer page
11DF600 Plus Dispensing and Filling Peristaltic Pump
DF600 Plus Dispensing and Filling Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Video Tutorials

Technical specifications

Speed range0.1-600 rpm
Filling volume range0.1-9999.99 mL
Filling time range0.1-9999.99 s
Pause time range0.5-9999.99 s
Filling volume resolution0.01 mL
Time resolution0.01 s
Copy numbers1-9999 times, setting "0" means unlimited
Back suction angle0-3600°
Dispensing accuracy<±0.5%
Motor typeStepper motor
Display4.3-inch industrial grade true color LCD screen
Control methodTouch screen and mechanical keypad
Keypad lifetime300,000 times
Start/stop, directionPassive switch signal, such as foot pedal switch; Active switch signal: 5-24V universal
Output interfaceOutput motor working status (open-collector output)
Communication interfaceRS485 communication Modbus protocol (RTU mode)
Power supplyAC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension237.4×152×158 mm (L×W×H)
Drive weight4.2 Kg
Power consumptionEach filling unit <50 W
Condition temperature0-40℃
Relative humidity<80%
Ask for a quotation Manufacturer page
12CF600 Plus Dispensing and Filling Peristaltic Pump
CF600 Plus Dispensing and Filling Peristaltic Pump
  • Product Introduction
  • Technical Parameter
  • Video Tutorials

Technical specifications

Speed range0.1-600 rpm
Filling volume range0.1-9999.99 mL
Filling time range0.1-9999.99 s
Pause time range0.5-9999.99 s
Filling volume resolution0.01 mL
Time resolution0.01 s
Copy numbers1-9999 times, setting "0" means unlimited
Back suction angle0-3600°
Dispensing accuracy<±0.5%
Motor typeStepper motor
Display4.3-inch industrial-grade true color LCD screen
Control methodTouch screen and mechanical keypad
Keypad lifetime300,000 times
Start/stop, directionPassive switch signal (e.g. foot pedal); Active switch signal: 5-24V universal
Output interfaceMotor status output (open-collector)
Communication interfaceRS485 communication, Modbus protocol (RTU mode)
Power supplyAC 220V±10% 50Hz/60Hz (standard); AC 110V±10% 50Hz/60Hz (optional)
Drive dimension237.4×152×158 mm (L×W×H)
Drive weight4.2 kg
Power consumption<50 W per filling unit
Condition temperature0-40℃
Relative humidity<80%
Ask for a quotation Manufacturer page

Catalogues

Brochures and datasheets, readable right here.

  • Dispensing and peristaltic pumps cataloguePDF · 4.4 MB
  • Dispensing and peristaltic pumps catalogue 2PDF · 1.9 MB
  • Dispensing and peristaltic pumps catalogue 3PDF · 1.9 MB
  • Dispensing and peristaltic pumps catalogue 4PDF · 1.8 MB
  • Dispensing and peristaltic pumps catalogue 5PDF · 1.5 MB
  • Dispensing and peristaltic pumps catalogue 6PDF · 1.5 MB
Select a catalogue to preview it

In our warehouse

Ready in our stock now

ItemModelQty
Peristaltic PumpLab N61

Buying in Egypt

Questions about Dispensing and peristaltic pumps

Where can I buy Dispensing and peristaltic pumps in Egypt?

Tiba Scientific supplies Dispensing and peristaltic pumps from Baoding Shenchen (China) in Egypt, with installation, user training and maintenance by its own engineers. 12 models are listed on this page. Some items are held in stock in Cairo.

How much do Dispensing and peristaltic pumps cost in Egypt?

Prices depend on the model, configuration and accessories, so Tiba Scientific quotes each request. Send the model or the analysis you need on WhatsApp or call 010 0529 9601 for a written quotation.

Does Tiba Scientific install and service Baoding Shenchen instruments?

Yes. Tiba Scientific installs and commissions the Baoding Shenchen instruments it supplies, trains the users, and provides calibration, preventive maintenance and repairs after handover.

Not listed

Send us the method. We will find the instrument.

Ask on WhatsApp Call 010 0529 9601

Type at least two characters.
